Wall Water Heater

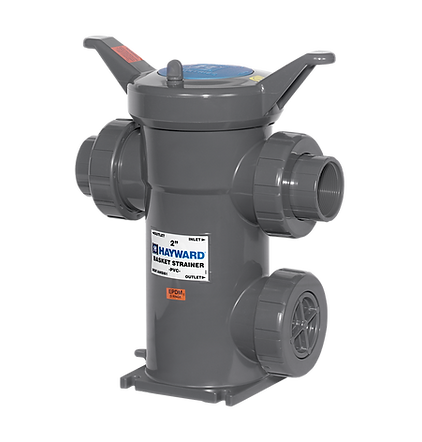

SB Simplex Basket Strainers

Description

Available in sizes 1/2" - 8" in PVC, CPVC, GFPP, Eastar® and natural PVDF materials.  Seals are FPM or EPDM with either socket, threaded or flanged end connections.  Each strainer comes with a standard plastic basket. Other basket materials available such as SS316, Monel and Hastelloy available upon request. See Basket Replacements.

Key Features & Benefits

  • Available in PVC, CPVC, GFPP and Eastar®

  • True Union Design

  • Ergonomic Hand-Removable Cover

  • In-Line or Loop Connections

  • External Cover Threads

  • Integral Flat Mounting Bases

  • PVC or CPVC Baskets Standard

  • NSF / ANSI 61 and NSF / ANSI 372 Listed

Product Range

Pipe Size:

½” (DN15) | ¾” (DN20) | 1” (DN25) | 1 ½” (DN40) | 1 ¼” (DN32) | 2” (DN50) | 2 ½” (DN65) | 3” (DN80) | 4” (DN100) | 6” (DN150) | 8” (DN200)

Body/End Connector Materials:

CPVC/CPVC | Eastar® / PVC | GFPP/GFPP | PVC/PVC | PVDF/PVDF | Platinum GFPP/PP Basket

Materials:

CPVC- 1/16 in Perf | 1/32 in Perf | 1/8 in Perf | 3/16 in Perf

GFPP- 1/32 in Perf | 1/8 in Perf

PVC- 1/16 in Perf | 1/32 in Perf | 1/8 in Perf | 3/16 in Perf

PVDF- 1/32 in Perf

Platinum GFPP- 1/32 in Perf | | 1/8 in Perf

Stainless Steel- 1/16 in Perf | 1/32 in Perf | 1/8 in Perf | 3/16 in Perf | 20 Mesh | 40 Mesh | 60 Mesh | 80 Mesh | 100 Mesh

Seals: EPDM | FPM

Connections:

Flanged | Socket | Socket/Fusion | Socket/Threaded | Theaded

Product Options

  • Stainless Steel, Monel®, Hastelloy® and Titanium Strainer Baskets

  • Pressure Differential Gauge and Switch

  • Baskets Available with Perforated or Mesh Liners
